6626 Outlet Sleeve

6626 Outlet Sleeve

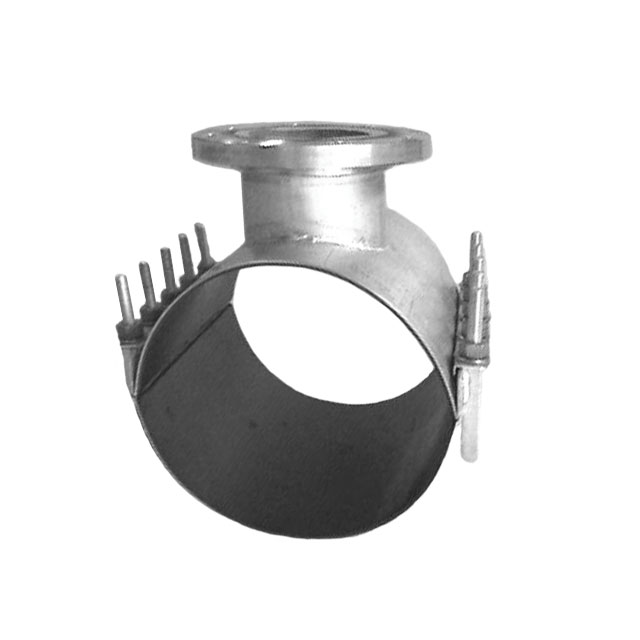

The ROBAR 6626 Outlet Sleeves are used for “DRY” tapping applications. Available for pipe diameters from 4” to 24”. Outlet options: 3” to 12”. Larger nominal sizes and/or larger flange sizes available upon request. Not for use on Concrete Cylinder pipe.



MATERIAL SPECIFICATIONS:

Shell: T-304 Stainless Steel, fully passivated*.
Fasteners: 5/8” NC T304 Stainless Steel. Nuts coated with anti-galling compound.
Torque: 70-80 ft. lbs.
Gaskets: Ringseal: NBR (Buna N) Rubber. Liner: SBR (Buna S) Rubber
Flange: T-304 Stainless Steel*, as per AWWA C-207 Class D.
Outlet Pipe: T-304 Stainless Steel, fully passivated*.

Working Pressure – 175PSI
